Simons Voss System 3060

Product Features

  • Smart Reader 3078.
  • Digital Locking Cylinder 3060 and 3061 - SC
  • Digital Smart Handle 3062 and 3062 - SC
  • Compact Card Reader 3078
  • Transponder 3064

The Digital Locking and Access Control System 3060 from SimonsVoss

The 3060 from SimonsVoss is the electronic version of a mechanical locking system providing all the functions of a classical access control system. Electronic transponders are used instead of mechanical keys, and digital locking cylinders and digital fittings instead of mechanical locking cylinders. Radio communication takes the place of a key turning in a lock. Data is transferred from the transponder to the locking cylinders or SmartRelais inductively at a frequency range of 25 kHz. The typical reading distance is up to 40 cm for the locking cylinder and up to 120 cm for the SmartRelais.

Using intelligent relays (SmartRelais), electronic switches can be activated depending on an authorised transponder.
The entire system can be programmed with a programming transponder (without a PC), using software with the programming device or via the wireless network.

All components can be networked at any time, even at a later date. Multi-networking is the ideal solution for any size of system. Locking cylinders which can be directly networked (Network Inside), the WaveNet radio network (868 MHz frequency) and the upgradable network cap for existing cylinders are available for this solution.

Digital Locking Cylinder 3060 and 3061 - SC

The Digital Locking Cylinder 3060 and 3061 - SC are multifunctional and easy to install to any European style locking cylinder with encapsulated electronic board for installation in doors compliant with DIN 18250, with Euro-profile locks compliant with DIN 18251. It evaluates radio
signals from transponders and decides whether access is authorized.

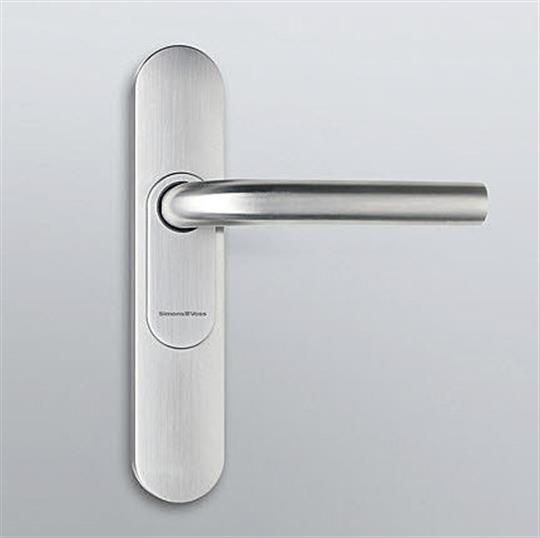

Digital Smart Handle 3062 and 3062 - SC

The Simons Voss Smart Handle gives you complete control. The system can identify, control utp 64,000 users with integrated button cells providing up to 150,000 activations.  The SCoffers the same level of convenience as the active variant. The only difference is its intergrated RFID reader, which is suitable for SmardCards based on MIFARE classic and the MIFARE DESFire standard.

Compact Card Reader 3078


The CompactReader allows any active System 3060 G2 locking component to be extended for use with MIFARE® Classic and MIFARE® DESFire SmartCards. Thanks to its very compact and attractive design it can be stuck to any door within a few seconds or alternatively fastened with two screws.

Transponder 3064
  • A DIGITAL ‘KEY’ FOR ALL SYSTEMS
  • ACTIVE TRANSPONDER TECHNOLOGY
  • DATA TRANSMISSION BY RADIO FREQUENCY
  • FULLY PROGRAMMABLE AT THE CLICK OF A MOUSE
  • CAN BE USED FOR THREE MUTUALLY INDEPENDENT
  • LOCKING SYSTEMS
  • SECURE AGAINST INTERCEPTION OR REPLAY ATTACKS
  • DIFFERENT VERSIONS AVAILABLE
The SmartReader 3078

The SmartReader enables the use of contactless MIFARE® Classic cards in the System 3060.

Access information is stored securely in a password-protected area of the Classic cards. The cardholder is only granted access if he or she is authorised
